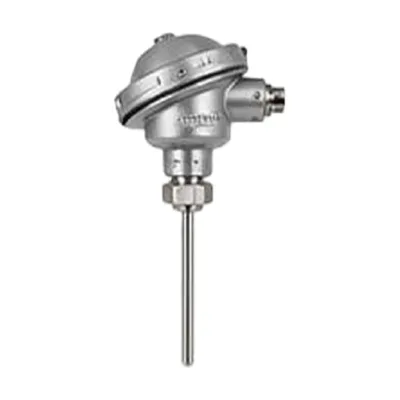

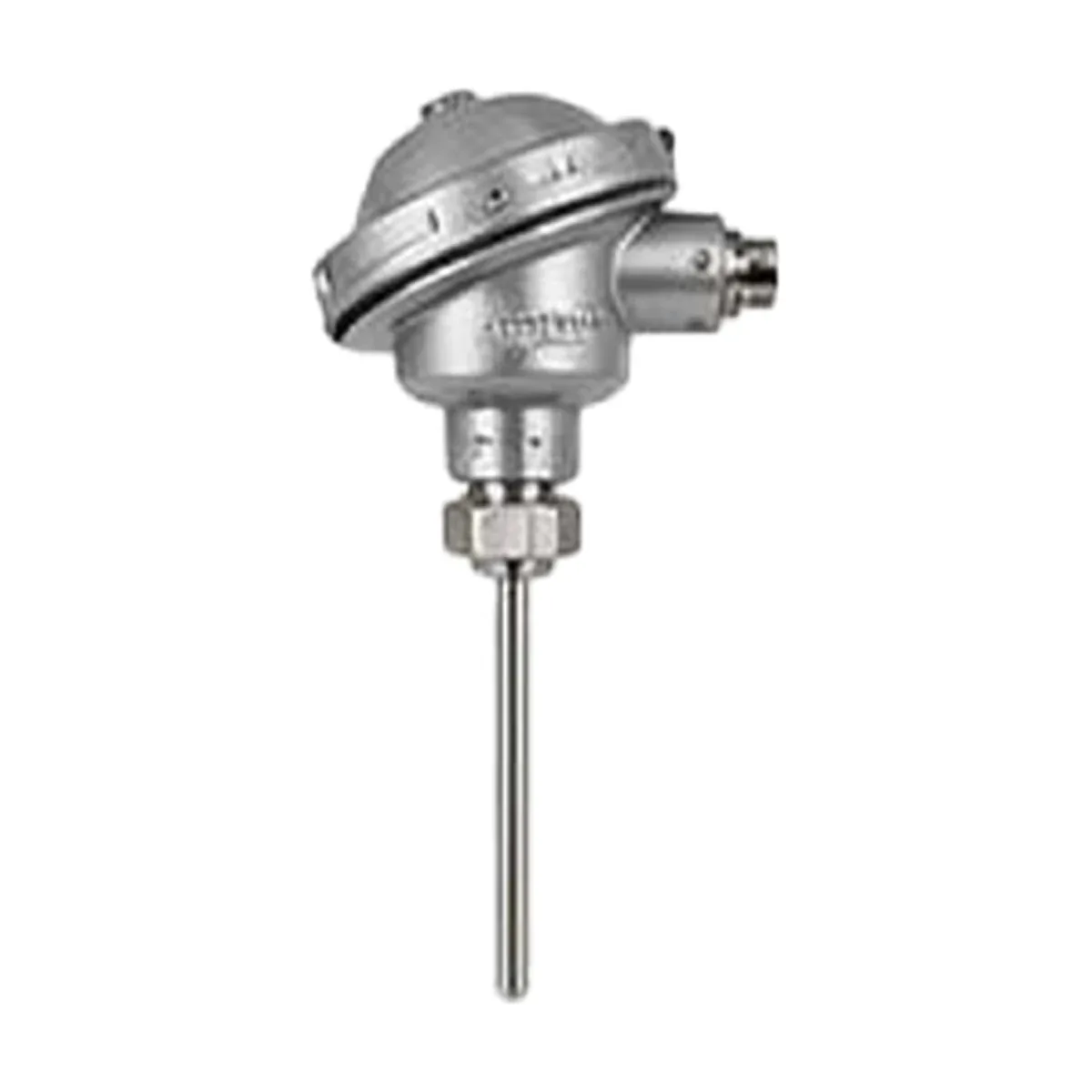

PT100 RTD Sensor with Thermowell & Head

The PT100 resistance temperature detector (RTD) is the preferred sensor wherever accuracy, stability and repeatability matter. Its platinum element has a resistance of 100 ohms at 0 °C that changes predictably with temperature, as defined by IEC 60751. Hamoon supplies PT100 assemblies with thin-film or wire-wound elements in 2-, 3- or 4-wire configurations, complete with thermowell and connection head for direct installation on pipes and vessels.

Thermowells machined from bar stock or fabricated from tube protect the sensor from pressure, flow and corrosive media and allow the insert to be replaced without shutting down the process. Spring-loaded inserts ensure good thermal contact with the thermowell tip, and an optional head-mounted transmitter converts the signal to 4–20 mA HART for transmission to the control system.

Typical applications

• Pipeline and vessel temperatures in oil, gas and petrochemical plants
• Bearing, winding and lube-oil temperatures of motors and turbines
• HVAC, cooling water and utility systems
• Food, pharmaceutical and chemical processes requiring high accuracy

Hamoon can supply PT100 sensors to your exact dimensions with calibration certificates. Request a quote or technical consultation.

Key points when selecting a PT100 RTD Sensor with Thermowell & Head

• Specify the accuracy class (A or B per IEC 60751) and the wiring (2, 3 or 4 wire).
• Select thermowell material and style (threaded, flanged or welded) for the pressure and fluid.
• Order a DIN B head with room for a head-mounted transmitter if needed.
• For critical points, a duplex element provides a backup measurement.

PT100 RTD Sensor with Thermowell & Head — frequently asked questions

Why are 3-wire PT100 sensors so common?

3-wire connection compensates for lead-wire resistance and gives good accuracy at lower cabling cost than 4-wire.

What does a thermowell do?

It protects the sensor from process pressure, erosion and corrosion and allows the sensor to be replaced without shutting down the line.
