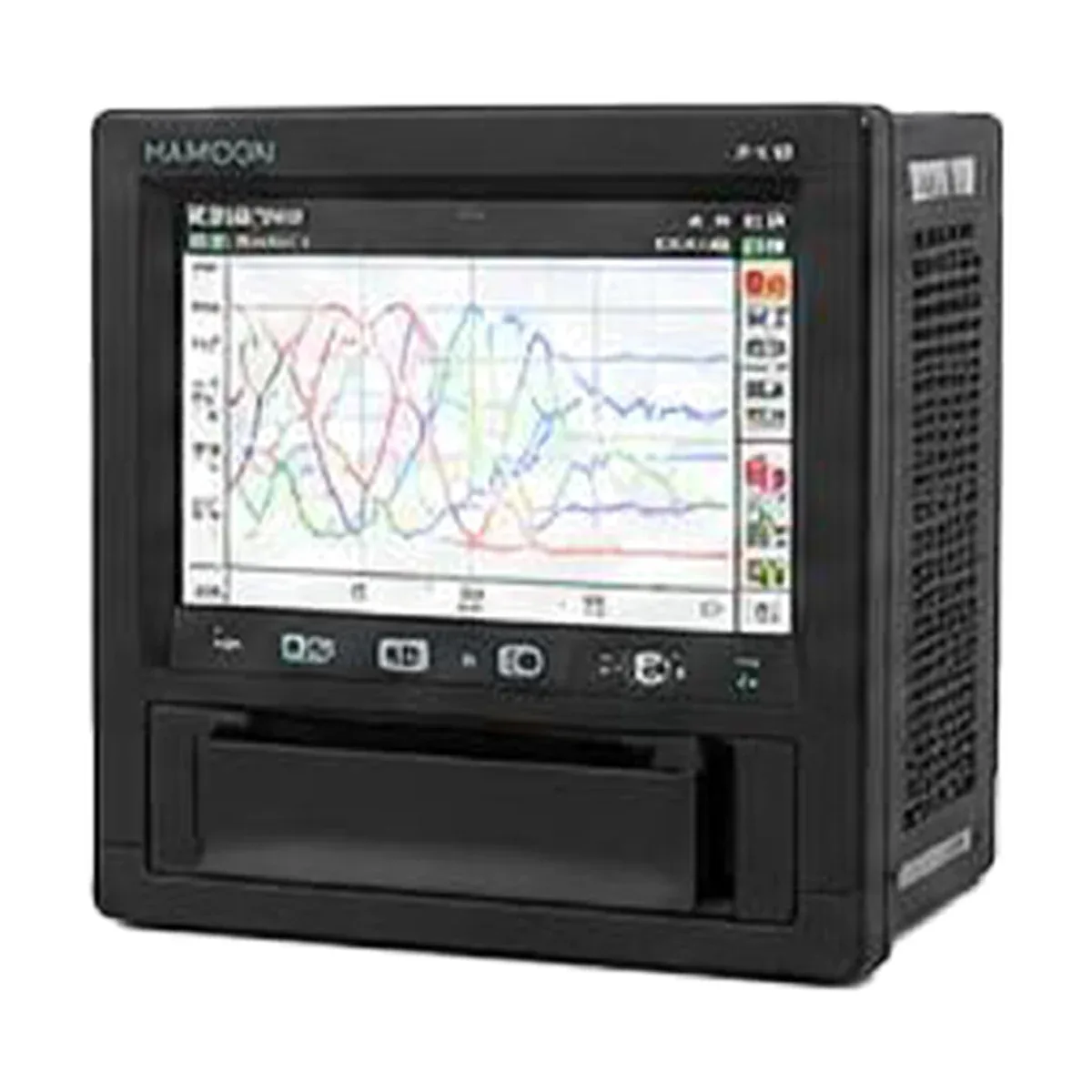

Paperless Recorder & Data Logger

Paperless recorders replace traditional chart recorders with a high-resolution colour touchscreen that displays trends, bar graphs, digital values and alarm lists in real time. Measured data is stored securely in internal memory and on removable SD cards or USB drives, eliminating paper charts, pens and consumables while making historical data easy to search and analyse.

Hamoon supplies paperless recorders from leading manufacturers with universal inputs for mA, voltage, thermocouple and RTD signals, from compact multi-channel units to large systems with high channel counts. Ethernet connectivity with Modbus TCP, a built-in web server and e-mail alarm notifications integrates the recorder into plant networks, while tamper-proof data files and audit trails support quality and regulatory requirements such as FDA 21 CFR Part 11 (model dependent). PC software allows data review, reporting and export.

Typical applications

• Furnace and heat-treatment temperature recording
• Boiler, turbine and utility monitoring
• Water and wastewater treatment plants
• Pharmaceutical, food and cold-chain quality records

Contact Hamoon to select the right number of channels and options and request a quote.

Key points when selecting a Paperless Recorder & Data Logger

• Define the number of input channels and signal types (mA, RTD, thermocouple).
• Calculate recording rate and memory for the required retention period.
• For pharma and food, check FDA 21 CFR Part 11 compliance.
• Match communication (Ethernet, Modbus TCP, web server) to the plant network.

Paperless Recorder & Data Logger — frequently asked questions

Why replace a chart recorder with a paperless recorder?

No paper or pens, secure data storage, easy search and analysis, remote reporting and digital alarms.

How is data retrieved from the recorder?

Via SD card, USB or Ethernet using the vendor software or FTP.
