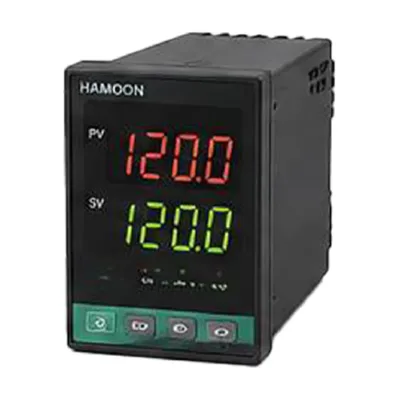

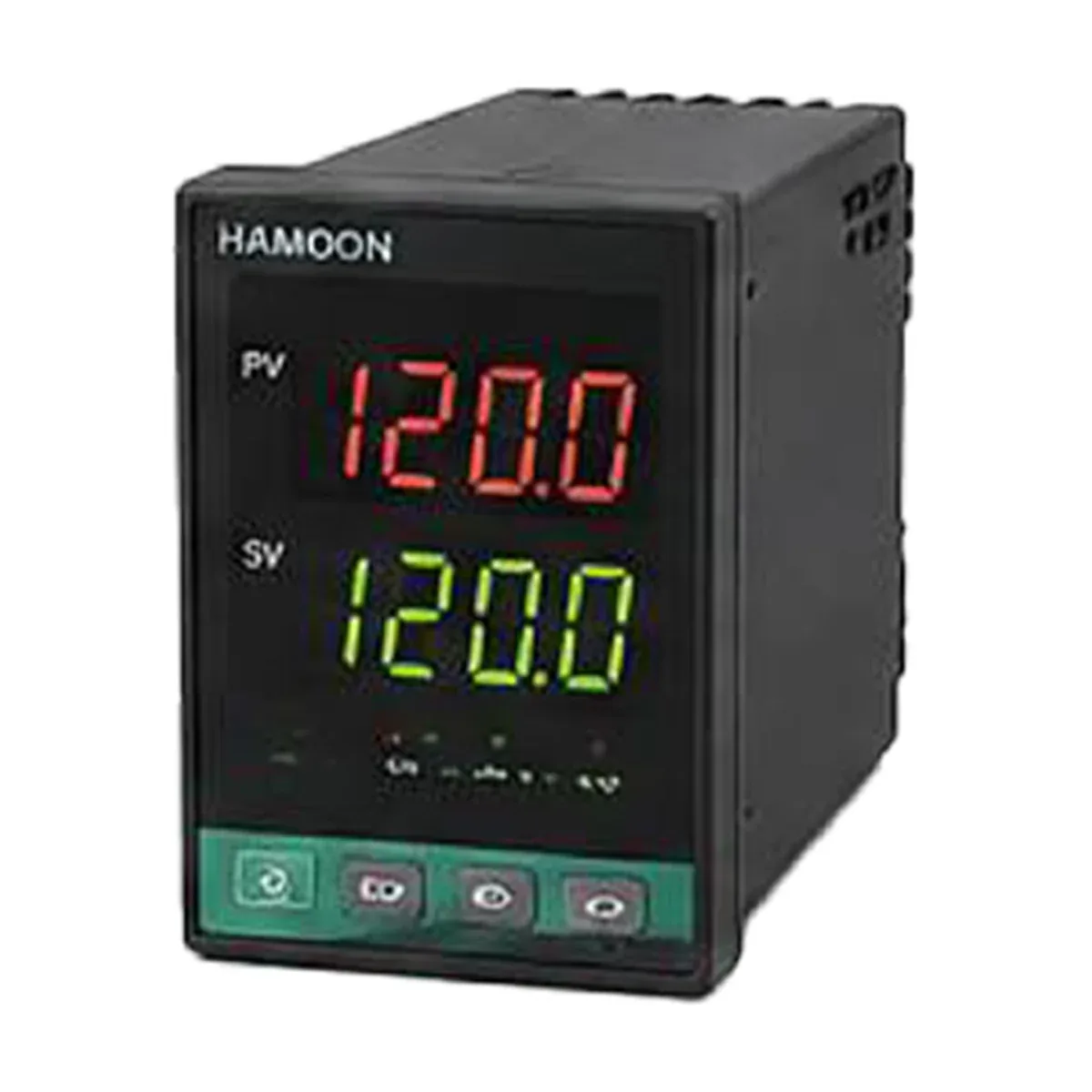

HAMOON PID Temperature Controller

The HAMOON PID temperature controller provides precise, stable control of heating and cooling processes in a compact panel-mounted unit. A dual display shows the actual process value (PV) and the setpoint (SV) simultaneously, so operators can see the process status at a glance. The controller accepts common thermocouple and PT100 inputs and uses a PID algorithm with auto-tuning to calculate the optimum control parameters automatically, minimising overshoot and settling time.

Depending on the configuration, control outputs can be relay, SSR drive voltage or 4–20 mA, with additional alarm relays for high and low limits and optional RS-485 Modbus communication for connection to PLCs and SCADA systems. Supplied and supported by Hamoon, it is a practical and dependable choice for machine builders and maintenance teams.

Typical applications

• Electric furnaces, ovens and heat-treatment equipment
• Plastic injection and extrusion machines
• Packaging, food and drying processes
• Hot-oil, water heating and laboratory systems

Contact Hamoon engineers for configuration support and request a quote.

Key points when selecting a HAMOON PID Temperature Controller

• Specify the input sensor (PT100 or thermocouple) and temperature range.
• Choose the control output (relay, SSR or 4–20 mA) for the heater or valve.
• For temperature profiles, choose a model with ramp/soak programs.
• Match panel size and supply voltage to your enclosure.

HAMOON PID Temperature Controller — frequently asked questions

What does auto-tune do on a PID controller?

The controller tests the process response and calculates P, I and D automatically so the temperature reaches setpoint quickly without oscillation.

Why choose an SSR output over a relay?

An SSR switches without moving parts, giving longer life and tighter control when heaters are switched frequently.
