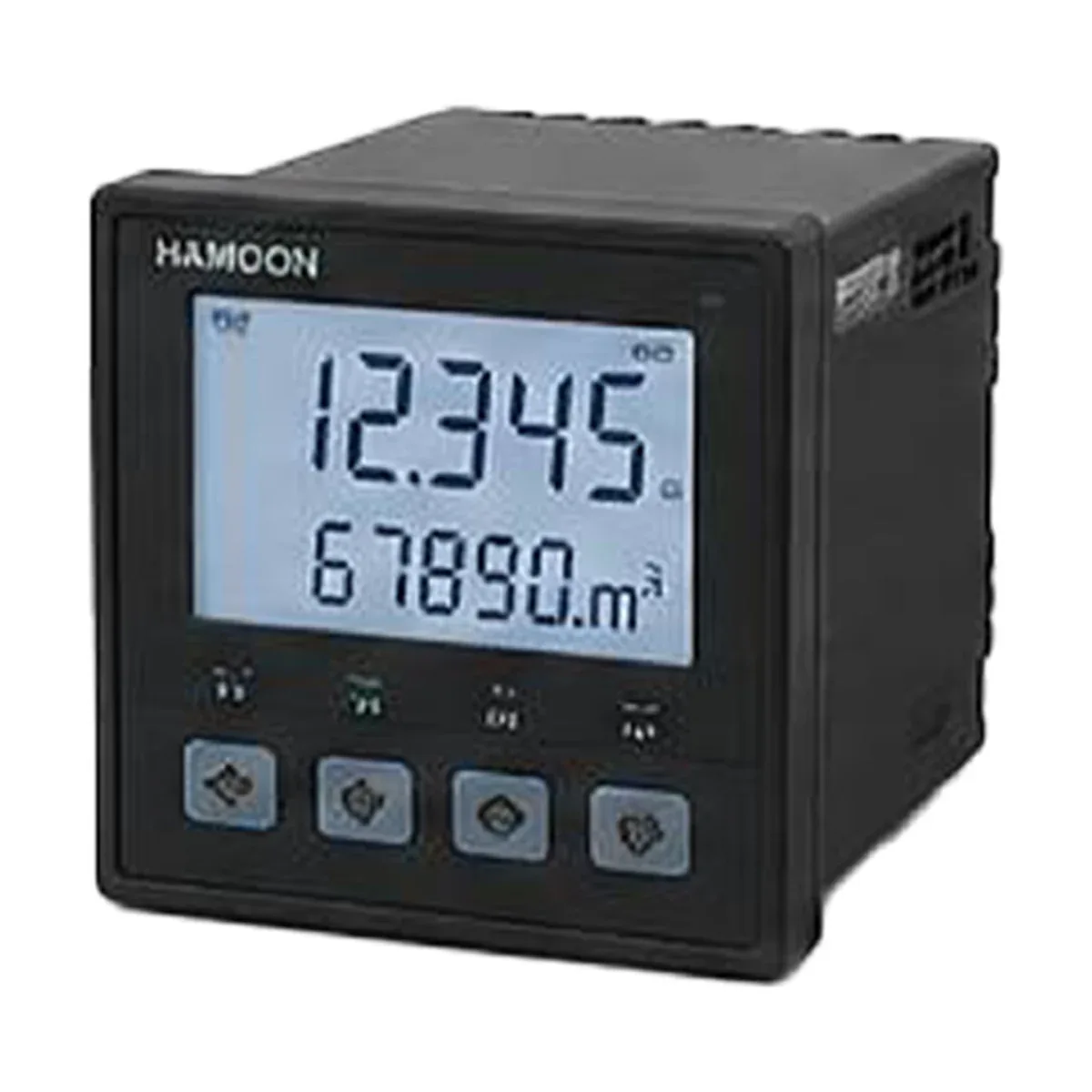

HAMOON Digital Panel Meter

The HAMOON digital panel meter is a compact, panel-mounted instrument for displaying electrical and process values on switchboards, control panels and machine enclosures. Its high-contrast LCD display can show AC/DC voltage, current or a scaled process signal such as 4–20 mA or 0–10 V, allowing operators to read pressure, level, flow or temperature directly in engineering units. Supplied under Hamoon's own brand, it combines dependable performance with straightforward installation and local support.

Standard DIN cut-out dimensions make it easy to fit in new panels or to replace existing indicators. Depending on the configuration, the meter can be supplied with programmable scaling and decimal point, alarm relay outputs, an analog retransmission output and RS-485 Modbus communication. Hamoon can also customise ranges, units and front labels for OEM and project requirements.

Typical applications

• Electrical switchboards and MCC panels
• Indication of 4–20 mA process transmitter signals
• Machine builders and OEM control panels
• Test benches and utility monitoring

Contact Hamoon to configure the panel meter for your project and request a quote.

Key points when selecting a HAMOON Digital Panel Meter

• Specify the input (mA, volts, RTD, thermocouple or pulse) and display range.
• Match the panel cut-out (e.g. 96×48 or 96×96) to the enclosure door.
• Define how many alarm relay outputs are required.
• Choose the RS-485 Modbus version to send data to a PLC or SCADA.

HAMOON Digital Panel Meter — frequently asked questions

Can a panel meter show engineering units?

Yes. A 4–20 mA input is scaled to any engineering unit such as bar, metres or m³/h.

Do HAMOON panel meters come with a warranty?

Yes. HAMOON-branded products are supplied with warranty, technical support and spare-parts availability.
