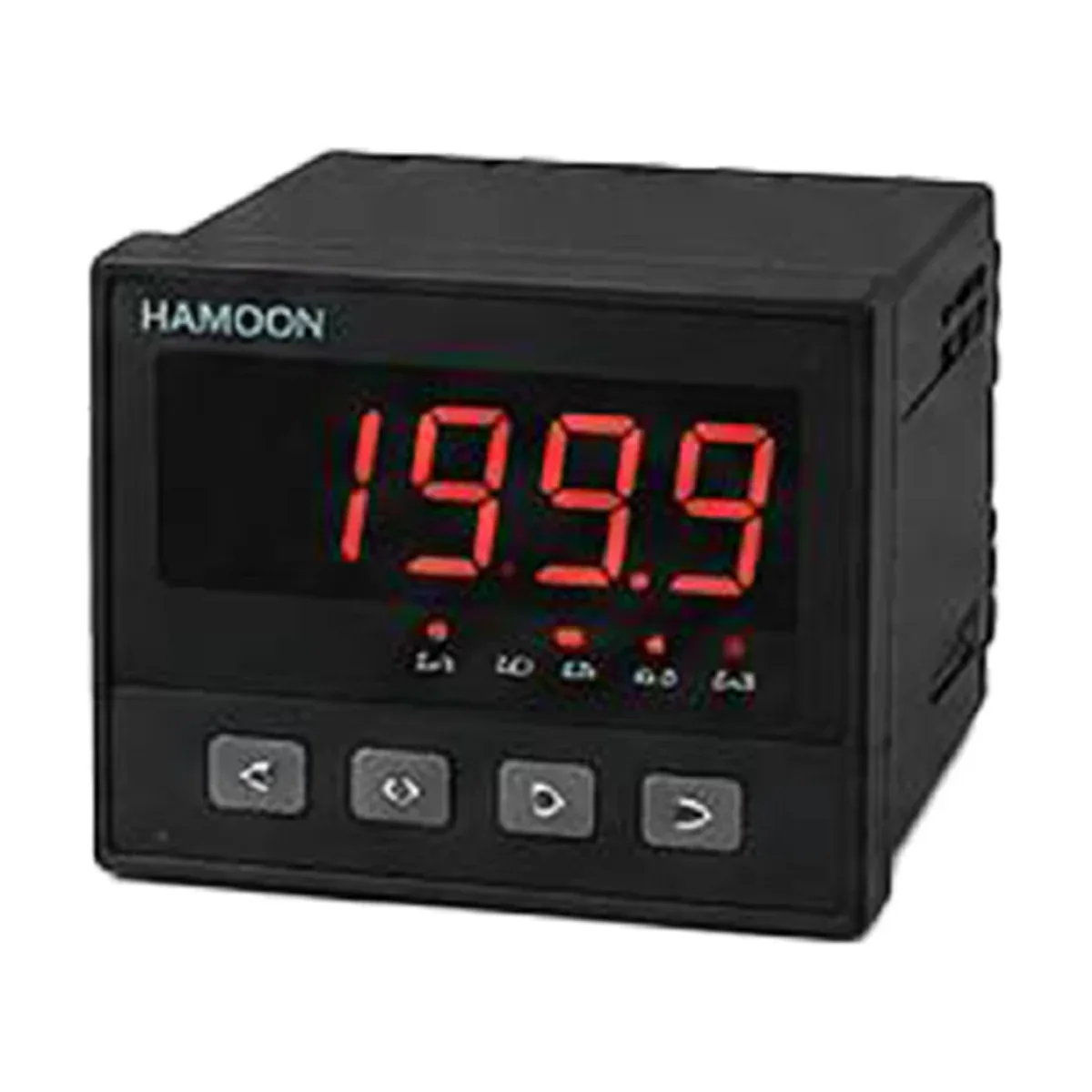

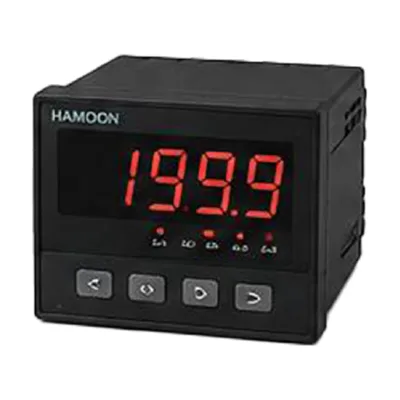

HAMOON Digital Process Indicator

The HAMOON digital process indicator displays process values clearly on control panels, using a bright 4-digit LED display that is easy to read from a distance and in low-light areas. It accepts standard 4–20 mA and 0–10 V transmitter signals as well as direct thermocouple and PT100 inputs (configuration dependent), and scales them to engineering units such as bar, °C, m or m³/h.

Alarm relays can be configured to signal high or low limits, and optional analog retransmission and RS-485 Modbus outputs allow the value to be passed on to a PLC or monitoring system. With standard DIN dimensions and straightforward front-panel programming, the indicator is a practical solution for new panels and for replacing older analog meters.

Typical applications

• Display of transmitter signals in control and MCC panels
• Tank level and flow indication
• Temperature and pressure monitoring on machines
• Utility and water treatment panels

Hamoon supplies and supports this indicator under its own brand. Contact us to configure inputs and alarms and request a quote.

Key points when selecting a HAMOON Digital Process Indicator

• Choose input type and number of digits for the required resolution.
• Select a model with 4–20 mA retransmission if the signal must be passed on.
• Define the number and type of alarms (high, low, HH, LL).
• For damp areas, an IP65 front bezel is recommended.

HAMOON Digital Process Indicator — frequently asked questions

What is the difference between an indicator and a controller?

An indicator displays and alarms; a controller also drives an output to bring the process to its setpoint.

Can the HAMOON indicator connect to a monitoring system?

Yes, via its retransmission output or RS-485 Modbus RTU port to PLCs and SCADA.
